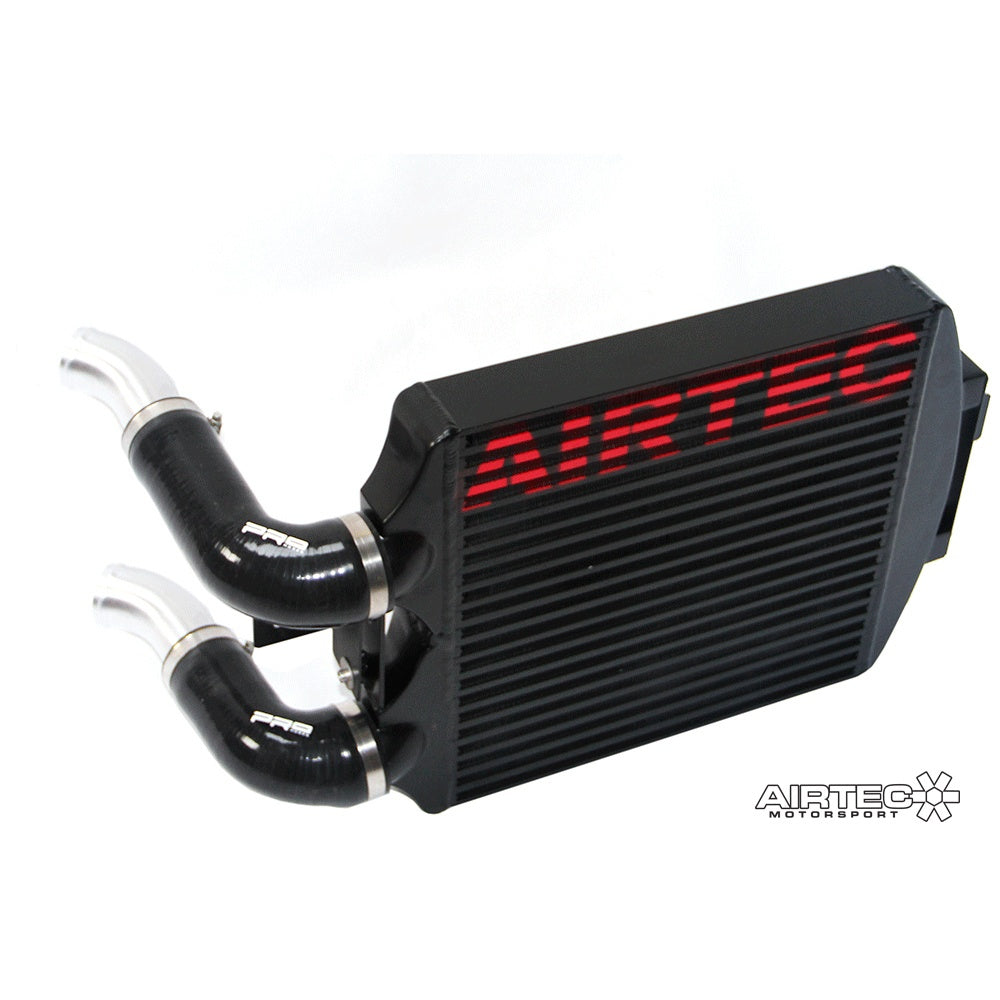

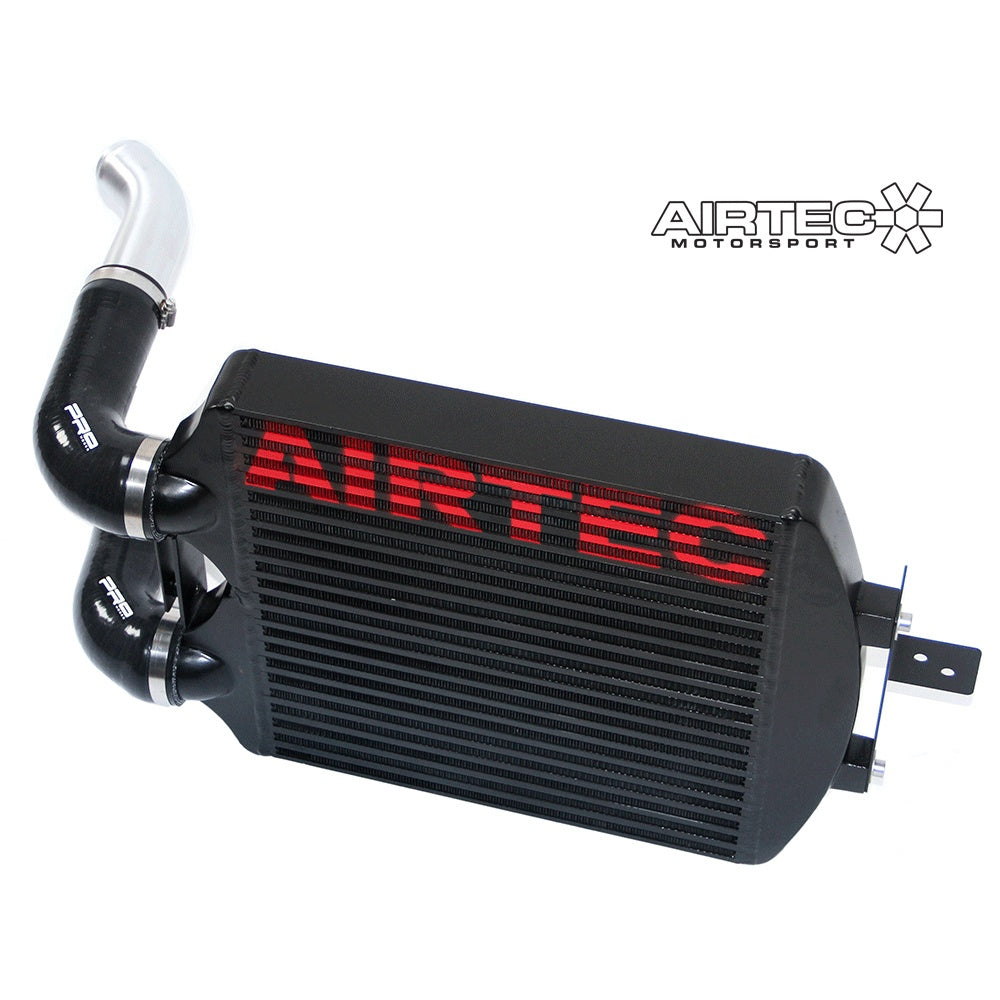

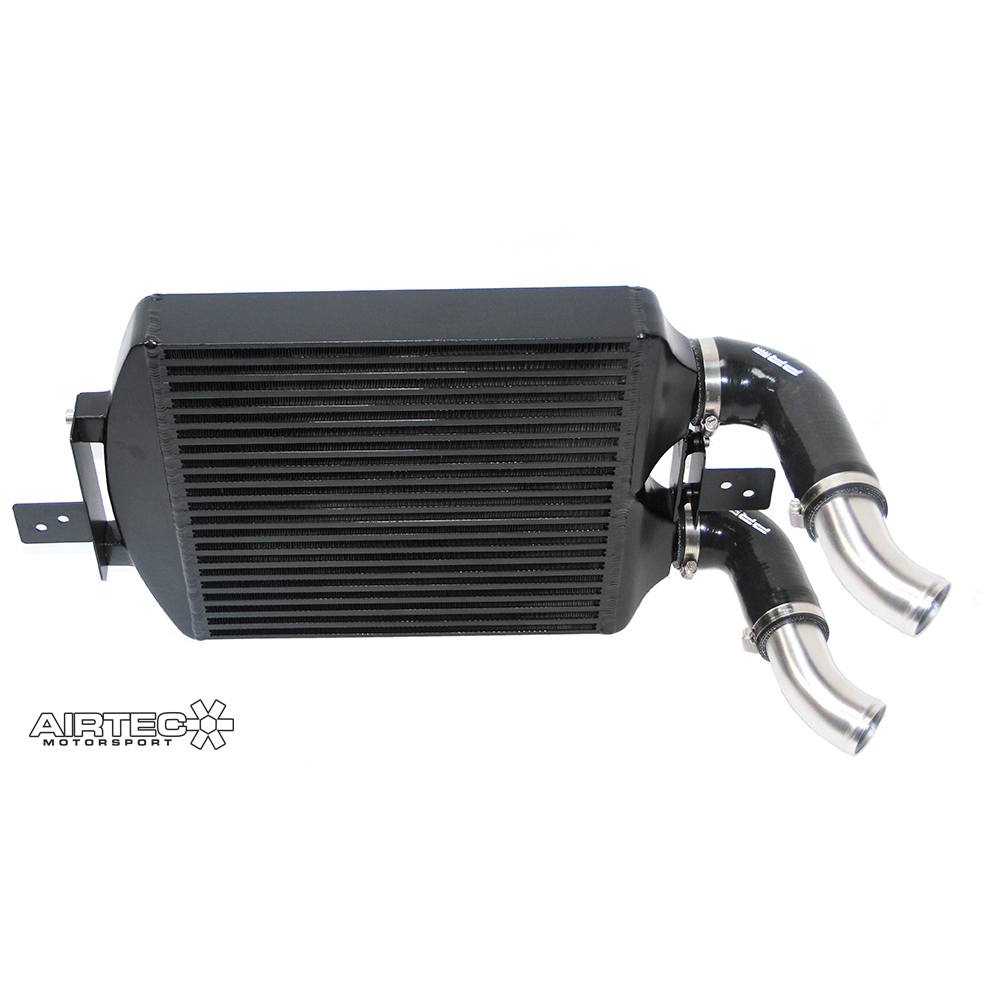

Airtec Motorsport Intercooler Upgrade for Transit Connect 1.0 / M-Sport 1.0

Proven horizontal 60mm core, runs left to right of the end tanks this gives the single pass design intercooler the shortest route for the charged air to pass though, with such a small turbo, the faster the charged air can get in & out the better.

Another great must have with our design is making full use of the hottest part of the intercooler, which is the top section, this is on full show allowing maximum Airflow. Tip, more of the grill can be opened up with Dremel or Drill to allow even more Airflow to the intercooler, we suggest to do this whilst fitting.

Proven and tested at Collins Performance with great results!

Standard intercooler: 62 Degrees

AIRTEC Stage 1 Intercooler: 44 Degrees

AIRTEC Stage 2 intercooler: 20 Degrees

AIRTEC intercooler will fit 100PS / 125PS / 135PS and 140PS (Red and Black) models.

Please note: Pipework only available in silver

Dimensions:
Width: 525mm

Height: 378mm

Depth: 60mm

Features

Twin pass huge 60mm core Intercooler with flowed cast end tanks, this means less welding and a stronger Intercooler
Comes with full fitting instructions & pipe work
No cutting bumper with our intercooler kit
Un-Beatable value for money
Available in Satin Black
AIRTEC 3 year unlimited mileage warranty
Fitting will take 1-2 hours depending on mechanical skill

AIRTEC Part No: ATINTFO47
