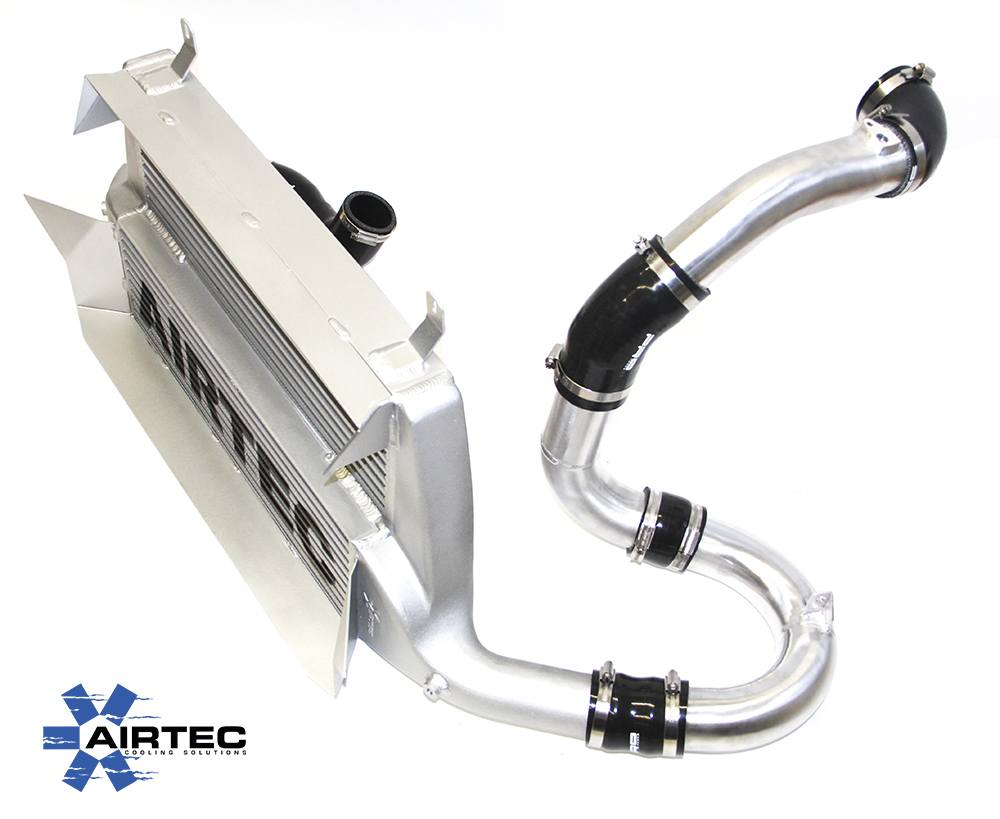

Airtec Intercooler Upgrade for Honda Civic Type R FK2 – With Big Boost Pipe Kit

AIRTEC front mount intercooler upgrade for the Honda Civic Type R FK2 with Big Boost Pipe Kit.

Designed to fit all 2015-2017 Honda Civic Type R models, this freer flowing front mount intercooler set up is a direct replacement for the much smaller, and more restrictive, OEM set up.

Dyno proven back-to-back testing showed a huge reduction in charge temps over standard (see below).

Despite its much greater surface area and volume, the AIRTEC intercooler upgrade fits neatly behind the original front bumper and requires no additional drilling or cutting.

The comprehensive fitting kit includes silicone hose connectors for an easy fit, all the correct fixings, full instructions and optional large diameter boost hoses.

Features:

60mm to 100mm two-step core design
Hand crafted free flowing end tanks
Lower aluminium air scoop
Direct fit, minor trimming needed to bottom under tray
Optional hand crafted big boost pipes
Available in a choice of either silver or Pro-Series black finishes, with or without the AIRTEC logo.

Test results taken at AmD Rolling Road showing charge temps before and after the OEM intercooler and the AIRTEC upgrade.
(Tested on Dream Automotive’s FK2 demo car)
Run 1
OEM intercooler

IN – 131 OUT – 60

AIRTEC intercooler
IN – 117 OUT – 16
Run 2
OEM intercooler

IN – 134 OUT – 62

AIRTEC intercooler

IN – 107 OUT – 17

Run 3
OEM intercooler
IN – 132 OUT – 58
AIRTEC intercooler
IN – 120 OUT – 18
Registered Design Right number: 6022632
Height 370mm
Core thickness 60mm / 100mm (Stepped design)
Width approx. 1000mm (Including end tanks)
Outlet size 63mm

AIRTEC Part No: ATINTHON02
