Airtec Motorsport
Airtec Motorsport Stage 3 Front Mount Intercooler for Audi RS3 8V (Non-Acc Only)
Airtec Motorsport Stage 3 Front Mount Intercooler for Audi RS3 8V (Non-Acc Only)
Regular price
£1,092.27 GBP
Regular price
Sale price
£1,092.27 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Freshly developed at AIRTEC HQ in the UK, we’re proud to launch our Stage 3 front mount intercooler kit with integrated crash bar design (replaces the stock crash bar) aimed at modified Audi RS3 8V owners who want the very highest level of cooling efficiency, power and performance for track or fast road use.
The finished design features 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm to 50mm single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
It therefore offers a huge 125% increase in surface area and a 108% increase in volume over standard with radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.

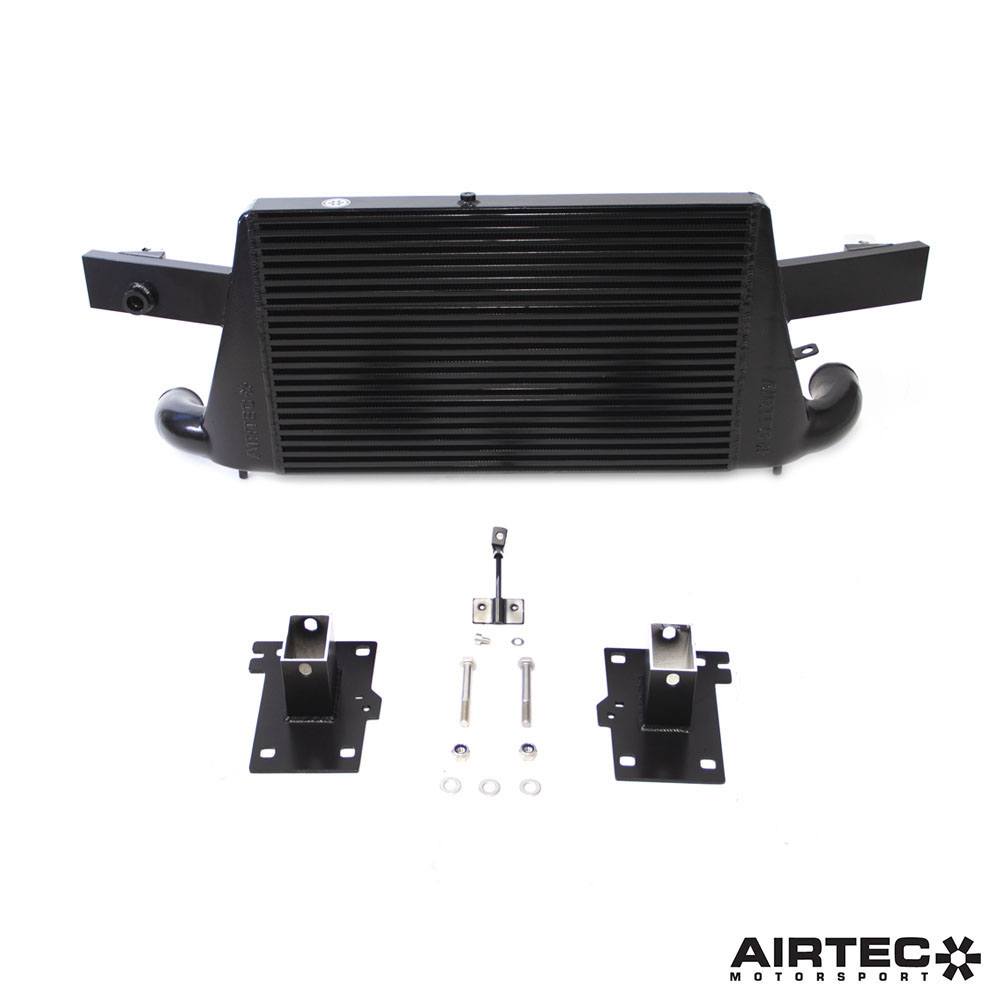

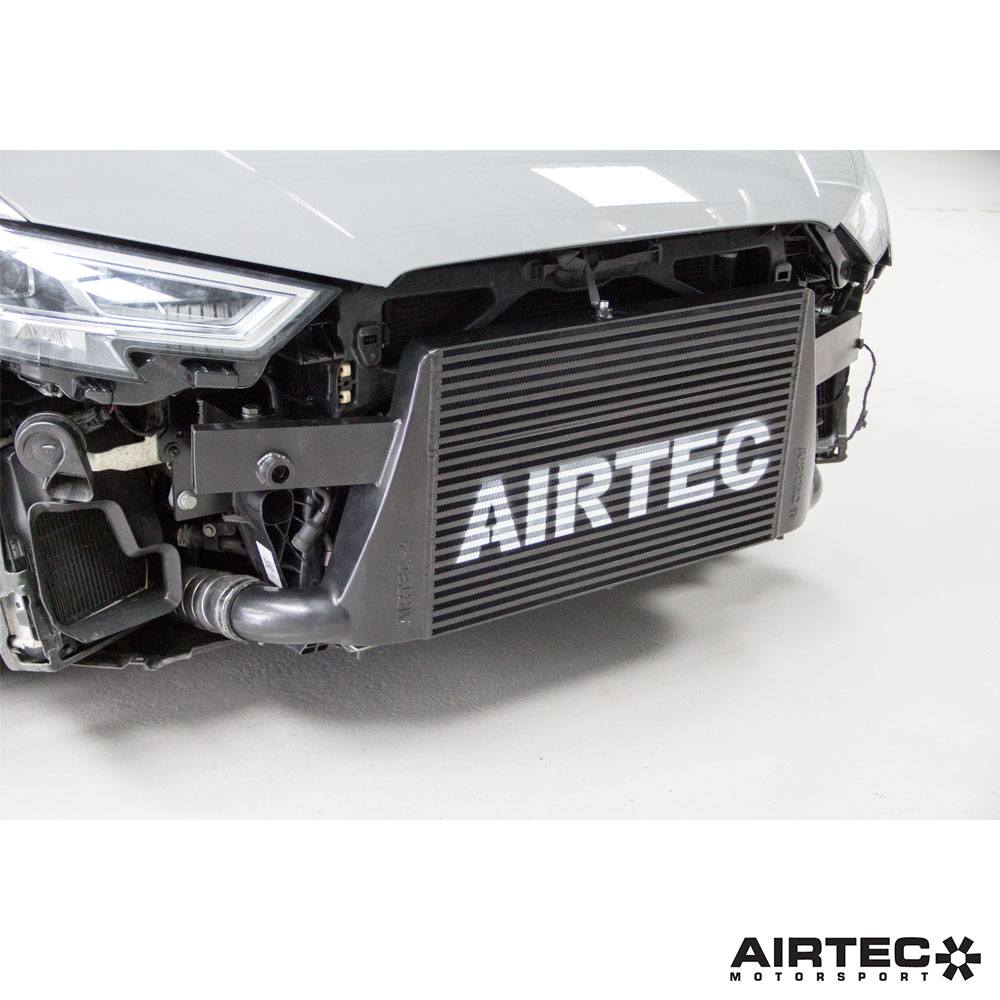

It fits neatly behind the original bumper and the comprehensive kit includes AIRTEC Motorsport’s replacement bonnet catch, laser-cut brackets and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi RS3s
Please note: This item does NOT currently fit models with Active Cruise Control (ACC) but it is being developed.
Dimensions:
OEM intercooler:
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²
AIRTEC Motorsport intercooler:
Width: 627mm
Height: 375mm
Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²
Features:
108% bigger capacity
125% larger frontal area
Proven race quality bar and plate core
70mm inlet and outlets
CAD designed end tanks to optimise air flow
Comes complete with full fitting instructions
Proven power increases and cooling efficiency
Towing eye feature retained
New bonnet catch supplied
Available in Pro Series Black only
Registered Design Right number: 6171871
AIRTEC part no: ATINTVAG41
The finished design features 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm to 50mm single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
It therefore offers a huge 125% increase in surface area and a 108% increase in volume over standard with radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.
It fits neatly behind the original bumper and the comprehensive kit includes AIRTEC Motorsport’s replacement bonnet catch, laser-cut brackets and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi RS3s
Please note: This item does NOT currently fit models with Active Cruise Control (ACC) but it is being developed.
Dimensions:
OEM intercooler:
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²
AIRTEC Motorsport intercooler:
Width: 627mm
Height: 375mm
Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²
Features:
108% bigger capacity
125% larger frontal area
Proven race quality bar and plate core
70mm inlet and outlets
CAD designed end tanks to optimise air flow
Comes complete with full fitting instructions
Proven power increases and cooling efficiency
Towing eye feature retained
New bonnet catch supplied
Available in Pro Series Black only
Registered Design Right number: 6171871
AIRTEC part no: ATINTVAG41
